Color Rendering Index (CRI) shows how faithfully a white light source renders selected colors against a reference source. At OKBuild, we use this metric to help commercial teams judge whether finishes, merchandise, and color-dependent tasks will look as intended.
For commercial specifications, we tie CRI to the visual task and exact product. Record CRI with correlated color temperature (CCT), output, controls, finish samples, and required compliance documents. Use exact-model data to verify reported performance, then confirm appearance in a representative mockup.
What Does CRI Mean in Commercial Lighting?
CRI is a color fidelity metric. Under the conventional CIE method, the general index, written as Ra, averages eight test colors against a reference source at a similar CCT. A score closer to 100 means a closer average match for those colors.
CRI does not describe how warm, cool, or bright the light appears. CCT describes the light’s color appearance, while lumens describe output. Ra also excludes R9 and cannot show every hue or saturation shift. When color is critical, review R9 or TM-30 data and confirm the result with physical samples. A high CRI score does not verify flicker, energy use, electrical safety, or code compliance.
When Should CRI Influence a Commercial Lighting Specification?
At OKBuild, we apply tighter CRI control when a color error could affect design approval, product presentation, work, or inspection. A higher score is not automatically useful in every room. Set the requirement from the visual task and the cost of rendering its colors poorly.
Color-Sensitive Finishes and Merchandise
Use tighter controls where lighting affects finishes or merchandise. Common examples include retail displays, showrooms, hotel guestrooms, restaurants, galleries, and finish-review rooms. Check the materials or goods that drive the buying decision instead of assuming one high CRI score will suit the whole space.

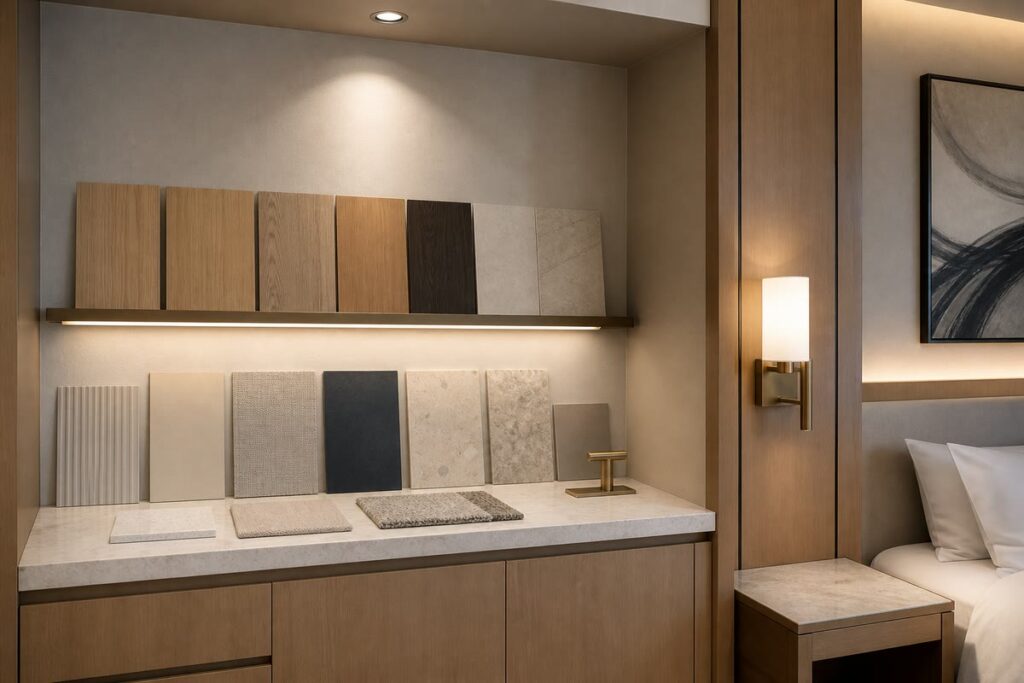

For example, we view approved cabinet core and surface finishes that control the interior work. For example, view approved cabinet core and surface finishes under the proposed light source, at the intended dimming level, and beside adjacent materials. A screen image or isolated color chip cannot show the installed effect.
Tasks That Depend on Color Recognition
Set task-specific requirements when people use color to identify, sort, inspect, or prepare something. This may include reading color-coded wiring, checking paint samples, sorting merchandise, preparing food, or assessing surface defects. In healthcare and other regulated settings, follow the project specialist’s criteria and applicable local requirements rather than a general CRI rule.
Check how much light reaches the task and how evenly it arrives. High CRI cannot correct low illuminance, glare, poor contrast, or a beam that misses the work surface. CRI supports the lighting calculation; it does not replace one.
How Should Teams Set and Record CRI Requirements?
Our process assigns CRI by visual task and records the requirement in a controlled luminaire schedule that identifies the exact model and operating condition. The phrase “high CRI” is incomplete unless the documents give a value, location, and approval method.
CRI Targets by Visual Task
These starting points are not universal code thresholds. The designer must adjust them for the application, owner standard, destination rules, and approved visual result.

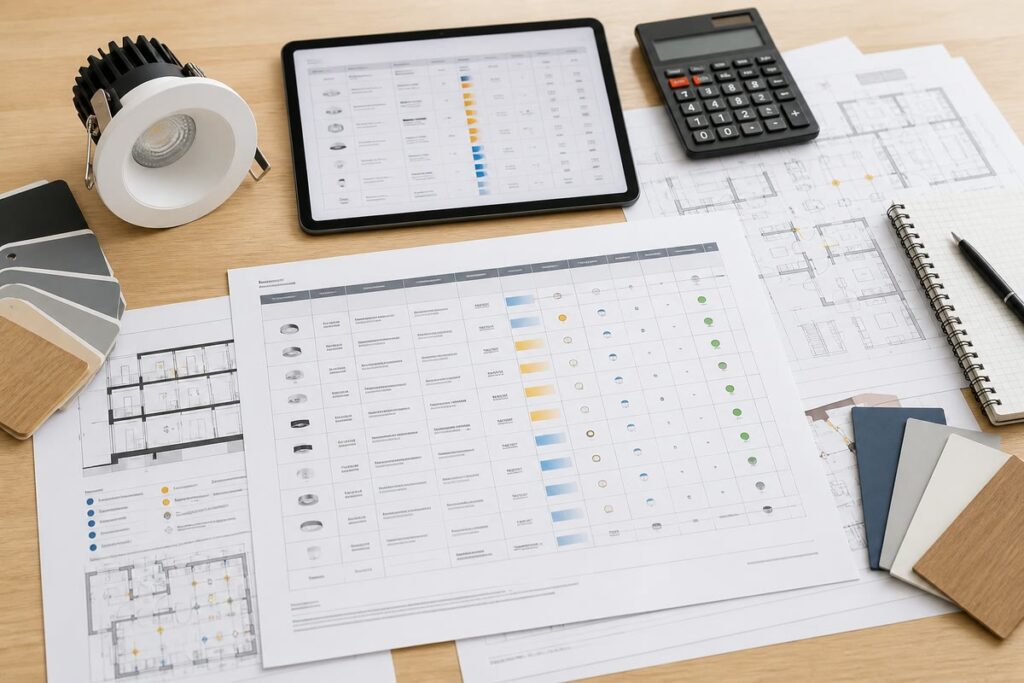

CRI lighting schedule with CCT and fixture data](https://okbuilds.com/wp-content/uploads/2026/08/03-scene-cri-lighting-schedule-1024x683.jpg)
| Visual task | Practical starting point | What still needs review |
|---|---|---|
| General circulation, storage, or spaces with low color sensitivity | Ra 80 is often used as an interior baseline | Required illuminance, glare, CCT, controls, energy criteria, and local requirements |
| Guestrooms, offices, restaurants, and other finish-led interiors | Consider Ra 90 or higher when the visual goal requires it | R9, finish samples, CCT consistency, dimmed appearance, and budget |
| Retail merchandise, food, artwork, cosmetics, or saturated colors | Do not rely on Ra alone | R9, TM-30 data where useful, spectral data, and a representative mockup |
| Critical color matching or inspection | Define the actual comparison procedure and acceptance criteria | Reference light, ambient conditions, observer position, instrument method, and task specialist approval |
Do not raise CRI across the entire project by default. Apply the stricter requirement only where it changes a visual decision. This limits unnecessary cost and lets bidders price the same scope.
Color, Output, and Cost Tradeoffs
We compare these factors because a higher CRI option may change, power, optics, glare control, driver behavior, availability, and price. A higher CRI option may change efficacy, delivered lumens, or cost, but the tradeoff depends on the exact product. Narrow the commercial project lighting range only after the schedule defines these inputs.
CCT belongs in the same comparison because the CRI reference changes with color temperature. Equal CRI scores at different CCTs do not promise the same appearance. If the specification permits more than one CCT, review each option against the intended finishes and operating condition.
Value engineering should preserve the approved visual task. Treat a lower-cost model as a substitution if it changes the color data, output, optics, driver, or color consistency. State each change and repeat the affected checks before approval.
Model-Specific Schedule Requirements
Every luminaire tag should identify one orderable configuration. The commercial project product categories can organize a multi-category BOQ, but the lighting schedule still needs model-level fields.
| Schedule field | Record required |
|---|---|
| Fixture identity | Luminaire tag, manufacturer, full catalog code, lamp or LED module, driver, and accessories |
| Application | Room, zone, mounting condition, visual task, and quantity |
| Color performance | Minimum Ra, R9 when relevant, CCT, allowed color variation, and TM-30 data if specified |
| Lighting performance | Initial delivered lumens, distribution or beam angle, wattage, efficacy if required, and photometric file reference |
| Controls | Dimming protocol, dimming range, tunable settings, control gear, and approved operating scenes |
| Evidence | Current model data, test report references, required safety or regulatory documents, sample status, and mockup record |
| Change control | Approved model, approved equal criteria, substitution procedure, revision, date, and responsible approver |
When a hotel contract places decorative lighting in the FF&E package, use matching product and approval codes in the lighting documents and the hotel FF&E schedule. Keep the fixture tag, finish code, room type, quantity, and approval status consistent. This ties the BOQ, drawings, purchase order, inspection record, and room labels to the same product.
How Should Teams Verify and Approve CRI Performance?
Our review combines exact-model technical data with a representative visual assessment. If the product changes, repeat every affected check. A family-level claim or unlabeled sample cannot verify a repeated commercial order.
Exact-Model Manufacturer Data
Request current data for the complete proposed configuration. The document should identify the manufacturer, full catalog code, LED source or module, CCT, Ra, R9 if required, output, wattage, driver, optics, and test conditions. For tunable products, require data at the settings the project will use. If one housing offers selectable output or CCT, confirm which setting the report covers.
Use the same model-matching discipline required for hotel material sourcing and supplier comparison. The company name, catalog code, report date, and tested configuration must match the quotation and schedule. Data for a related product family does not verify the offered fixture.
Sample and Mockup Review
Because a commercial fit-out material package coordinates lighting with visible finishes, the mockup must recreate the conditions that affect color judgment:

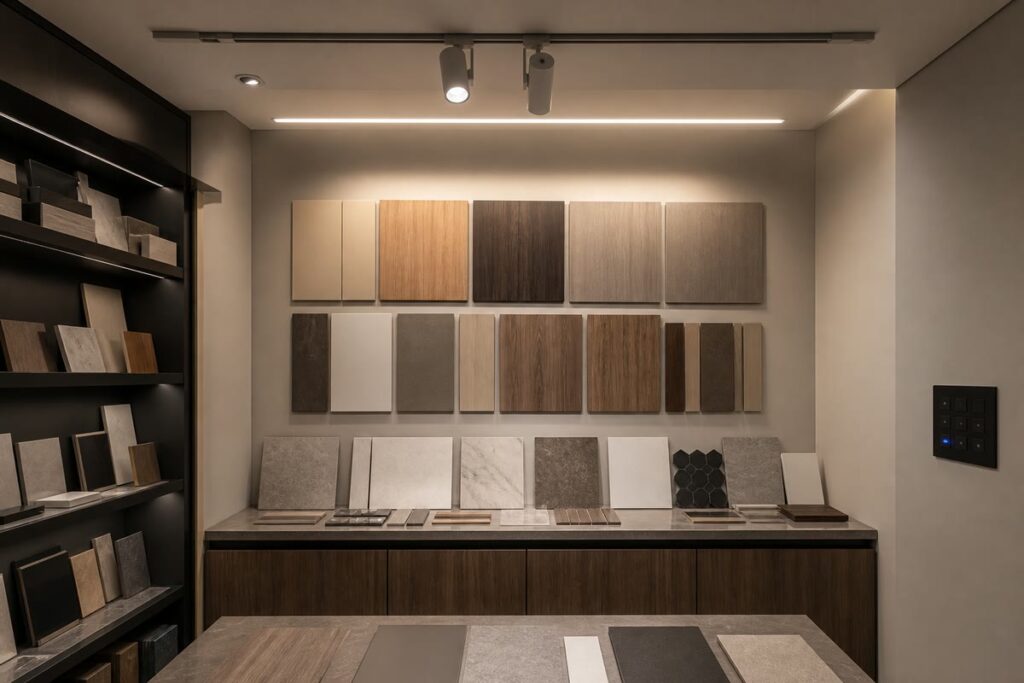

Commercial lighting mockup for CRI approval](https://okbuilds.com/wp-content/uploads/2026/08/04-scene-cri-mockup-approval-1024x683.jpg)
- Use the proposed fixture, LED source, driver, optics, and controls.
- Place the actual finish, merchandise, or artwork samples in the viewing area.
- Set the intended CCT, dimming level, beam direction, mounting height, and ambient light.
- Record the fixture code, settings, sample codes, reviewers, comments, date, and approval status.
A mockup verifies appearance only under its recorded conditions. It does not replace electrical, photometric, energy, or code evidence. Keep the approved sample or signed reference for later batch comparisons.
Dimming, Tuning, and Substitution Checks
Operating settings can affect light quality, so we check the fixture used in the project. Depending on the LED, driver, and control design, dimming or tuning may change output, CCT, spectrum, flicker behavior, or color rendering. Request data at the specified settings when available. Then test the planned scenes in the mockup with the proposed driver and controls.

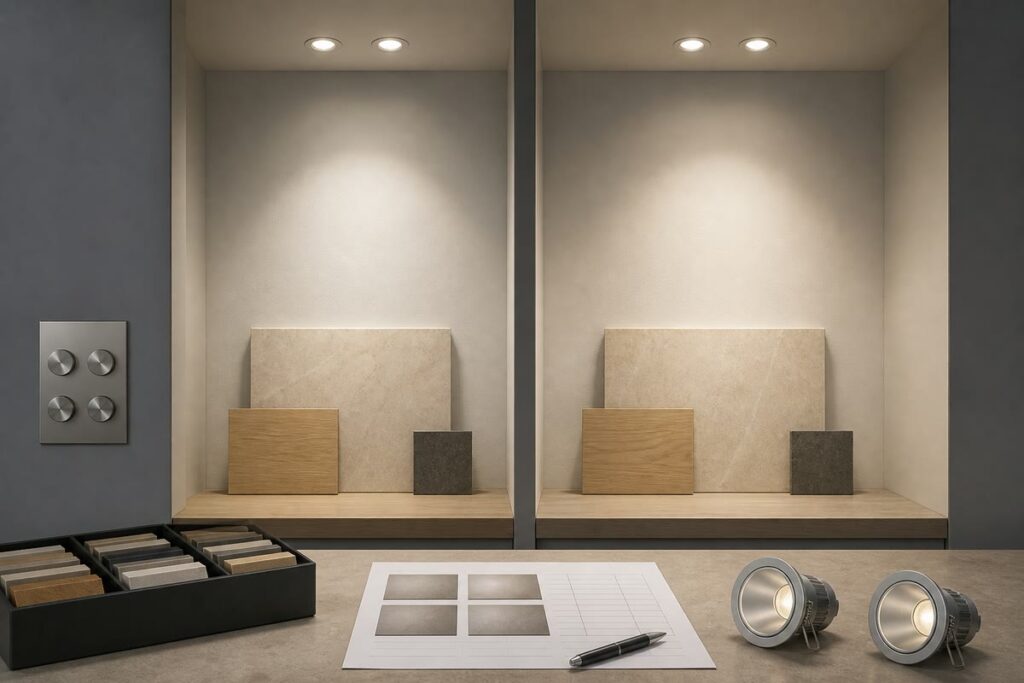

Lighting dimming and fixture substitution review](https://okbuilds.com/wp-content/uploads/2026/08/05-scene-cri-dimming-substitution-check-1024x683.jpg)
Every substitution goes through our full schedule review. Match the catalog code, LED source, CCT, Ra, R9, and required TM-30 data first. The review must also cover output, optics, wattage, driver, controls, color variation, documents, price, and lead time. Record approval before purchase or production.
Frequently Asked Questions
Why Can Two Fixtures With the Same CRI and CCT Render a Finish Differently?
Two fixtures can reach the same Ra and CCT with different spectra. Because Ra averages eight test colors, it does not show every hue shift or change in saturation. Compare R9, TM-30, or spectral data when relevant, then view the actual finish under both fixtures.
Does a High-CRI Rating Also Mean the Fixture Is Flicker-Free?
No. CRI measures color fidelity, while flicker describes changes in light output over time. The LED source, driver, dimmer, control method, and operating level can affect flicker. We recommend a separate flicker metric and test condition where cameras, sensitive occupants, or demanding visual tasks make flicker relevant.
Does CRI Apply to RGB or Colored Lighting?
Conventional CRI compares nominally white light with a reference source of similar CCT. It is not useful for a saturated red, green, or blue output. For RGBW or tunable-white fixtures, evaluate each specified white-light scene and judge colored scenes against criteria suited to the intended effect.
Does a High-CRI Rating Demonstrate Code Compliance?
No. A high CRI score reports color fidelity under the stated test method. It does not establish compliance with building, energy, electrical, accessibility, egress, or workplace requirements. The responsible project professionals must identify the applicable rules and obtain any required review from the authority having jurisdiction.
Can an LED Fixture’s Color Rendering Change Over Its Service Life?
Yes. LED packages, phosphors, and optical materials can change as they age, while thermal conditions may accelerate the shift. The light’s chromaticity or spectrum can move before the fixture stops operating. Initial CRI does not prove long-term color stability. For color-sensitive projects, request model-specific color-maintenance data and define how replacements will match the installed batch.
